Hydroblasting Robot

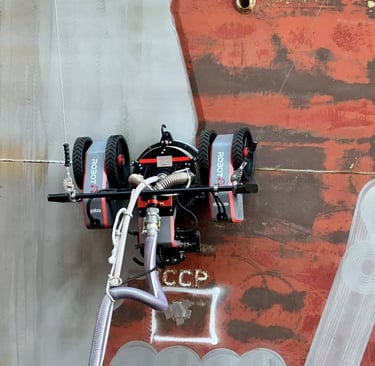

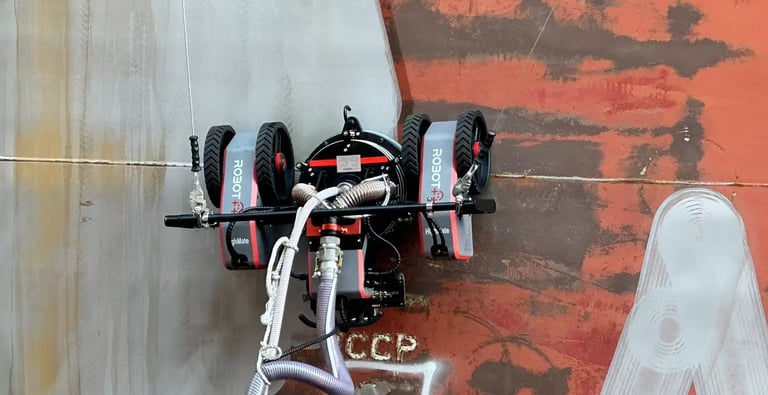

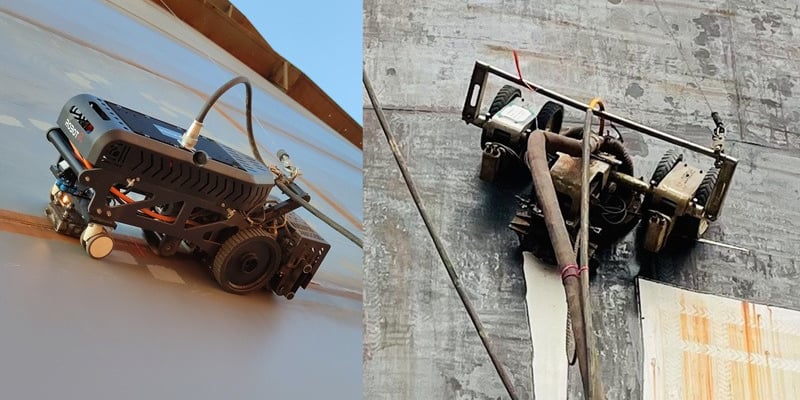

This is the latest hydroblasting robot featuring the innovative four-wheel flexible magnetic platform design, the robot offers strong curvature adaptability, excellent obstacle crossing performance, stable attachment ability, advanced intelligence and wide range of applications. It is capable of covering over 98% of the ship hull surface preparation. Furthermore, it can be connected to a recovery pump to achieve highly efficient waste recovery, making it an all-around robotic solution.

• 1. Smart Operation: The robot can be controlled by an operator on the ground using a remote control. It has three modes of operation: manual, semi-auto or cruise mode, and automatic mode. With a high level of automation, it significantly reduces the need for manual labor, greatly decreasing work intensity.

• 2. Efficient Surface Preparation: Utilizing ultra-high-pressure water jet technology, the robot can effectively remove rust and old paint from the surfaces of large structures, such as ship hulls. Its efficiency is several times that of manual job, greatly enhancing the operation.

• 3. Eco-Friendly Design: The wastewater containing paint and rust debris generated during the operation process can be recovered and treated using a vacuum recovery system, minimizing environmental pollution.

• 4. Magnetic Technology: The robot uses permanent magnetic adhesion technology, providing excellent wall-adhering capabilities, enabling it to work steadily on vertical and overhead surfaces.

• 5. Two-wheel Driving System: The robot employs a two-wheel drive system with differential steering, offering strong load capacity and climbing ability. It moves quickly and responds flexibly.

• 6. Safety Design: During operation, the robot is equipped with two or more fall arrestors, ensuring there is no risk of falling from heights.

• 7. Multi-functional: In addition to surface preparation for ships, this robot can also be used on steel surfaces of storage tanks, spherical tanks, bridges, and other structures where magnetic attraction is applicable.

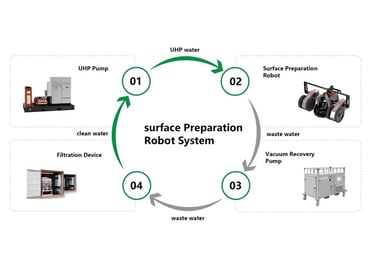

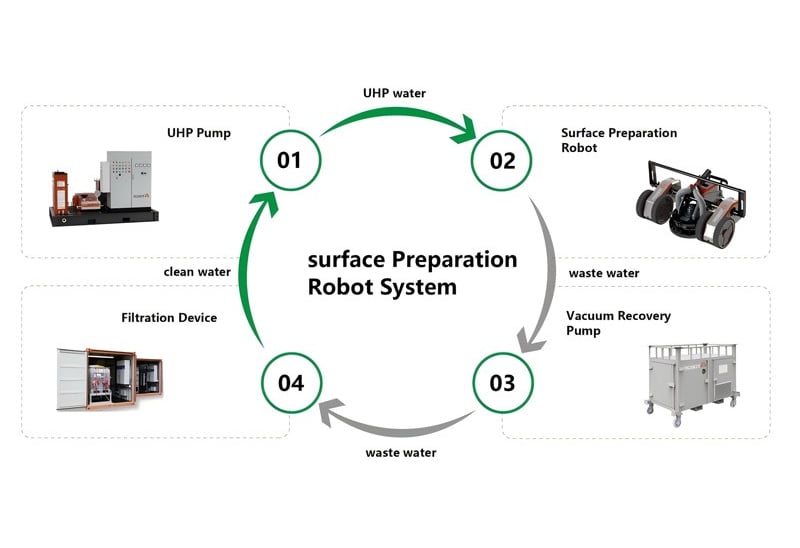

The surface preparation robot and its associated equipment include several key components: The robot, ultra-high-pressure pump, vacuum recovery pump, and wastewater filtration system. The UHP pump primarily pressurizes and delivers water to the cleaning unit of the robot. The robot performs surface preparation through the rotation of the spray bar and the movement of the robot's platform. Wastewater and debris generated during the process are collected through recovery pipes into the recovery pump, which then transports the wastewater to the filtration system. After passing through the filtration and solid-liquid separation systems, the waste and water are separated to meet industrial discharge standards and achieve freshwater recycling.

Solution Features

1. Surface Preparation Robot
   -Equipped with high-pressure water blasting capabilities, it efficiently removes rust, oil, and old paint layers from metal surfaces.
   -Uses permanent magnetic technology to securely attach to steel surfaces, preventing slipping or detachment.
   -Features a two-wheel drive system with high load capacity and climbing ability, allowing for flexible operation with heavy loads.
   -Simple operation via remote control from the ground, enhancing operational safety.

2. UHP Pump
   - Acts as the power source for the robot, providing a stable flow of high-pressure water.
   - Works together with the robot to achieve efficient surface preparation while ensuring operational safety and convenience.

3. Vacuum Recovery Pump
   - Recovers wastewater and debris generated during the blasting process for subsequent treatment.
   - Maintains cleanliness at the work site, preventing secondary environmental pollution.

4. Filtration System
   - Intelligent integrated design with modular and automated characteristics, facilitating transport and installation.
   - High-quality, stable water flow, accommodating various scales of wastewater treatment needs.
   - Employs advanced physical and chemical treatment methods to effectively remove organic compounds, nitrogen, phosphorus, and other pollutants.
   - Low operational cost, durable, and capable of fully automated operation and management.

5. Conclusion
   These equipment work together to enhance the efficiency and safety of surface preparation tasks. They also contribute to environmental protection through the recovery and filtration of wastewater, meeting the current industrial demands for green, intelligent, and efficient equipment.

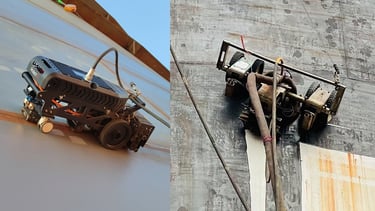

Integrated Solution of the Tank Surface Preparation

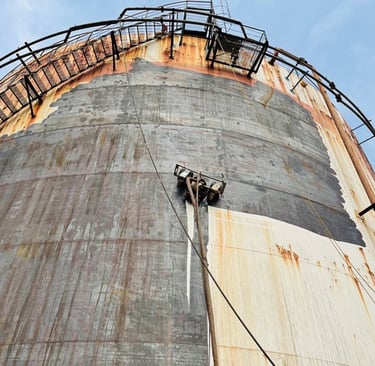

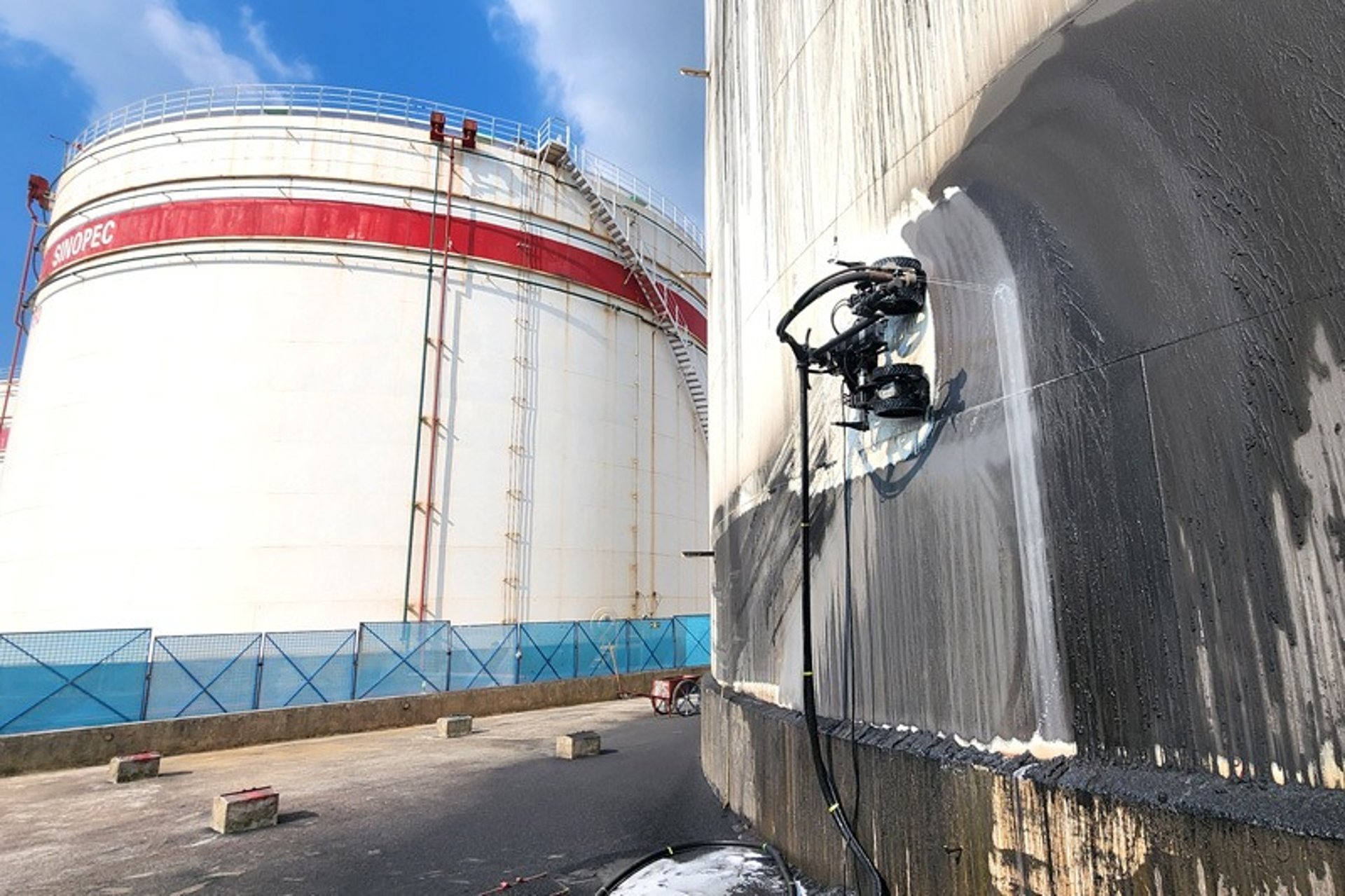

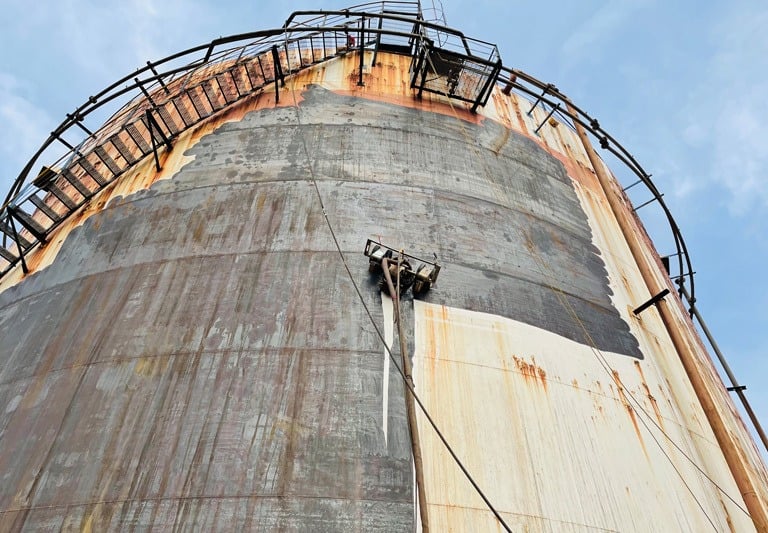

Project info: Zhejiang Special Equipment Inspection Institute: Chemical Tank Polishing and Surface Preparation Operation;Tianjin Fubao: Chemical Explosion-proof Operation.

Efficient Operation: The robot has a polishing efficiency of 0.45 meters per minute, and the rust removal quality reaches ST 2.5 grade, with the robot's work efficiency being more than 6 times higher than manual work.

Environmentally Friendly: The robot is equipped with a vacuum recovery plate, achieving real-time recovery of wastewater. At the same time, the overall rust removal efficiency reaches 35 square meters per hour, with an efficiency increase of more than 5 times.

Strong Stability: The robot has a stable adhesion, and the rust removal process is safe without any accidents.
