The lightest known material with the lowest thermal conductivity, a star for energy conservation and emission reduction in the future

The magic material that changed the world

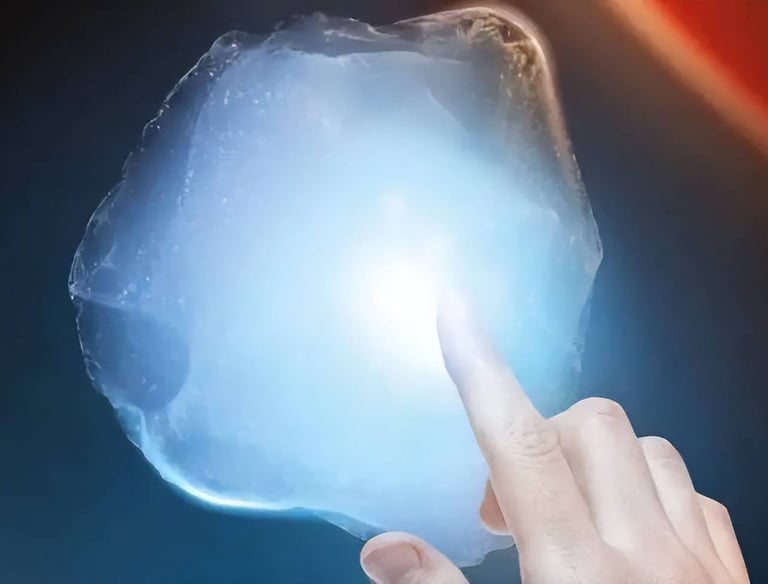

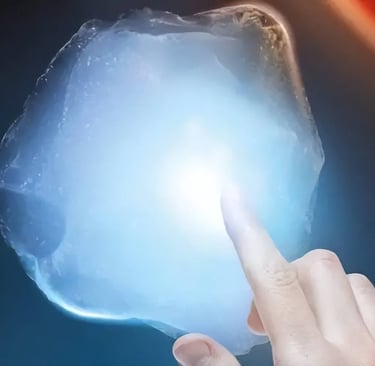

Aerogel is currently known as a light solid material because of its nanoporous structure (1-100nm), low density (1~500kg/m³), low dielectric constant (1.1~2.5), and low thermal conductivity (0.013)~0.025W/(m·K)), high porosity (80~99.8%), high specific surface area (200~1000m³/g) and other characteristics, showing unique properties in mechanics, acoustics, heat, optics and other aspects, It has broad and huge application prospects in many fields such as aerospace, military, transportation, communications, medical, building materials, electric power, metallurgy, etc., and is called "the magical material that changes the world".

Silica aerogel is a material with good thermal insulation performance so far. Its pore size is lower than the mean free path of air molecules under normal pressure. Therefore, the air molecules in the aerogel pores are approximately static, thus avoiding the convective heat transfer of air. The extremely low volume density of aerogels and the curved path of the nano-network structure also prevent gas and solid heat conduction, and the "infinitely many" void walls can reduce heat radiation. These three aspects work together to block almost all the ways of heat transfer, so that aerogel can achieve a thermal insulation effect that other materials can’t match, even far lower than the thermal conductivity of static air at room temperature of 0.025W/m·K, reaching 0.013W /m·K or less.

Customizable aerogel pastes and coatings

Aerogel coating is a light, hydrophobic, heat-insulating silica aerogel powder as the main raw material, using a special process to evenly disperse in the thick water In the coating medium, the prepared slurry. On the basis of retaining the original performance of the thick coating, the coating improves the index of high-efficiency heat insulation and effectively solves the dust problem of the aerogel during transportation and use.

The aerogel paste we provide has been customized locally in view of the high temperature and high dust climate characteristics of the Middle East. It is resistant to salt and alkali, metal corrosion, wind and sand, and strong ultraviolet rays.

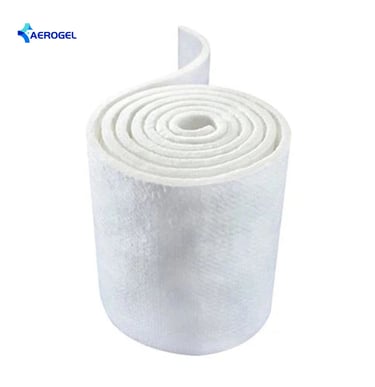

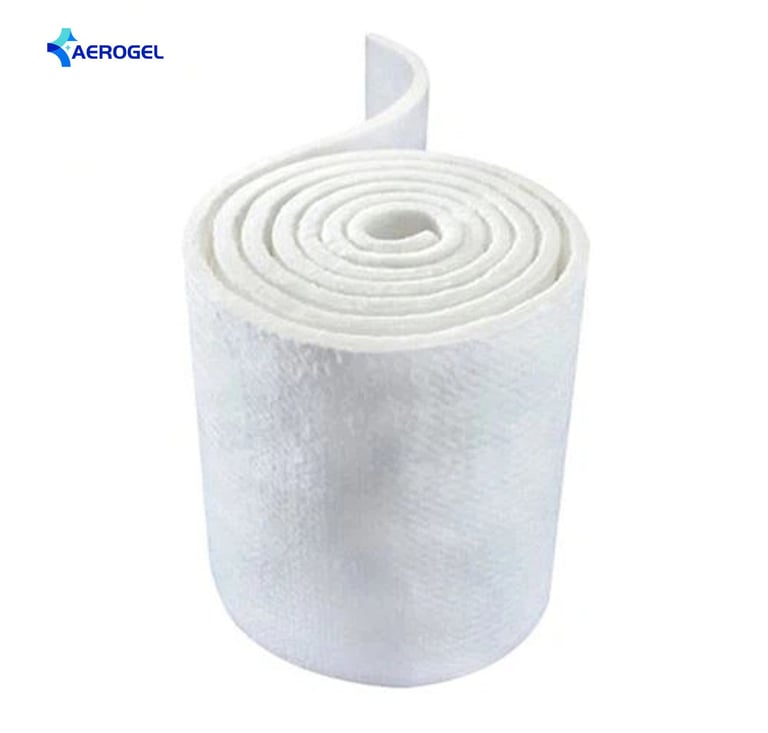

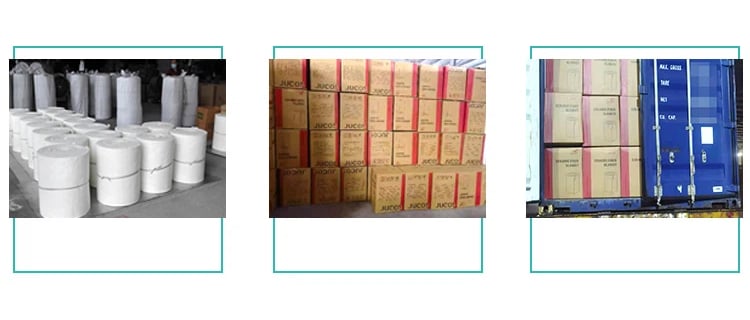

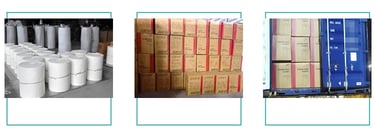

Aerogel insulation Blanket

Aerogel insulation Blanket belong to super insulation material based on it super low thermal conductivity which can archive Fireproof, waterproof, anti-noise, anti-low temperature, anti-high temperature. Based on its flexible and simple construction process, it is the most ideal thermal insulation material.

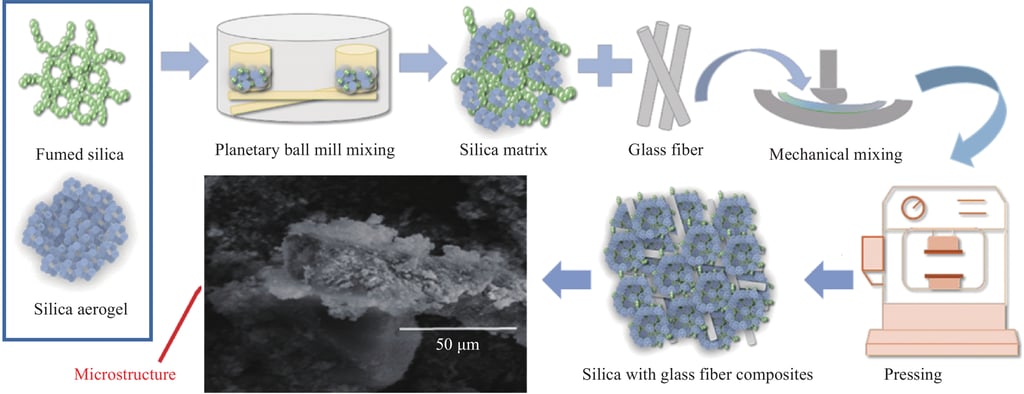

Aerogel insulation Blanket is advanced insulation materials made from silica aerogel, the lightest solid material known for its exceptional thermal properties. These blankets combine the unique characteristics of aerogel with a flexible fiber matrix, resulting in a lightweight, easy-to-handle product that delivers superior thermal insulation.

Aerogel insulation Blankets are versatile and suitable for a wide range of industries, including:

• Oil and Gas: Insulation for pipelines, tanks, and equipment in extreme environments.

• Construction: Thermal and acoustic insulation for buildings, roofs, and walls.

• Aerospace: Lightweight insulation for aircraft and spacecraft.

• Industrial: Insulation for furnaces, boilers, and high-temperature equipment.

• Transportation: Thermal barriers for automotive and marine applications.

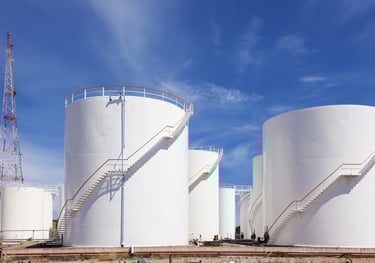

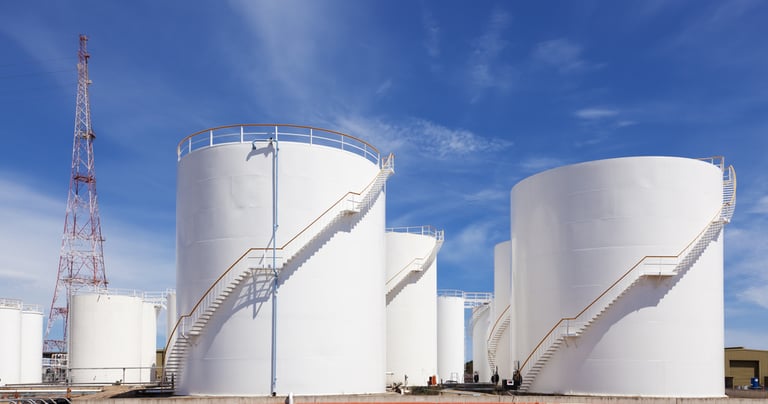

Crude Oil and Fuels tanks

We provide a complete set of Hydroblasting Robot, Shot Blasting Robot and Surface Roughening Robot, Polishing Robot is used to remove old coatings and complete surface treatments such as cleaning and roughening. Finally, the robot is used to complete the metal anti-corrosion primer spraying, aerogel thermal insulation coating spraying, and reflective topcoat spraying.

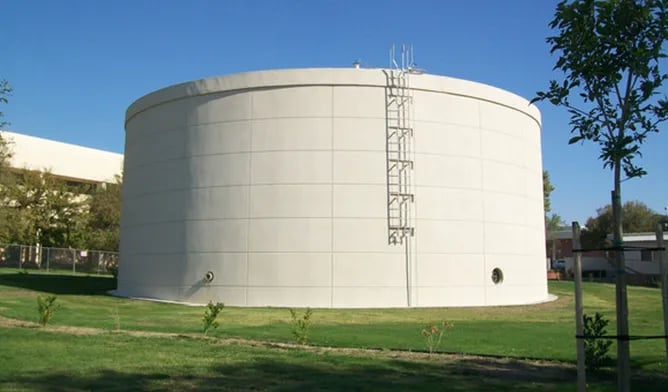

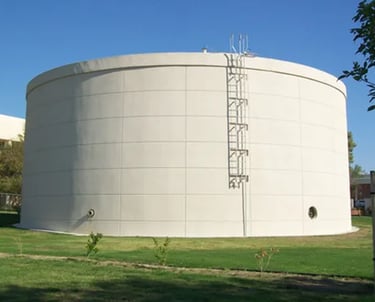

Municipal Water Tanks

We provide a complete set of Hydroblasting Robot, Shot Blasting Robot and Surface Roughening Robot, Polishing Robot is used to remove old coatings and complete surface treatments such as cleaning and roughening. Finally, the robot is used to complete the metal anti-corrosion primer spraying, aerogel thermal insulation coating spraying, and reflective topcoat spraying.

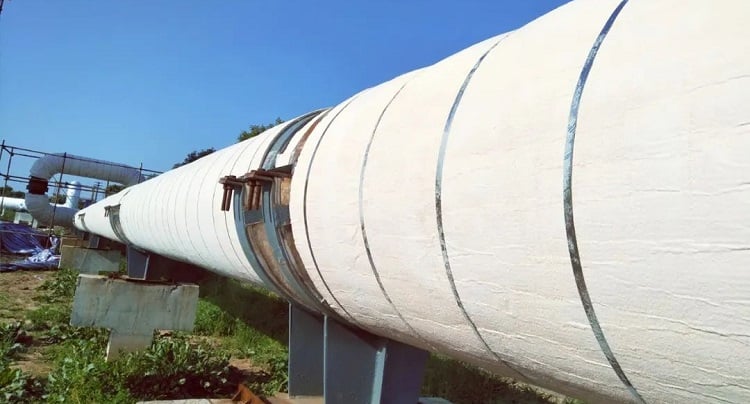

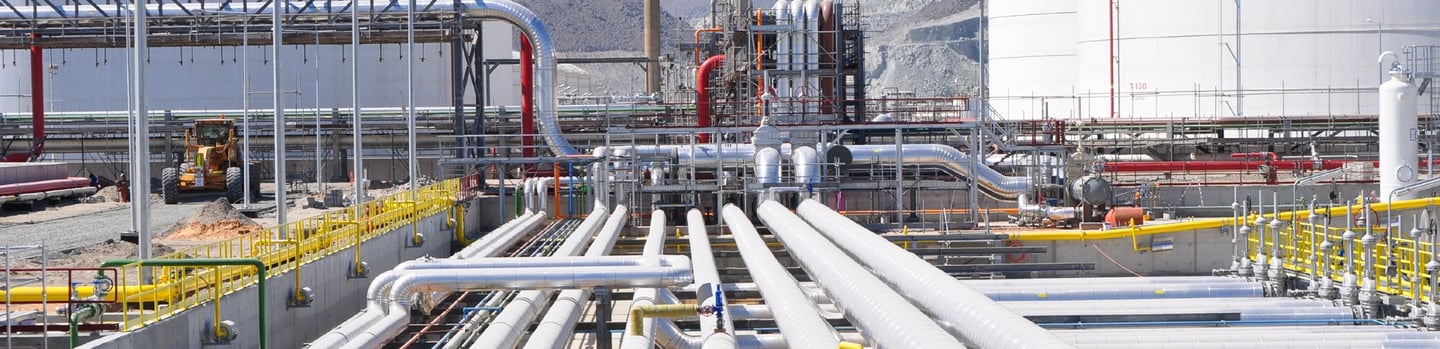

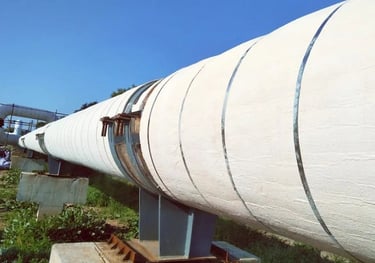

Heat Pipes and Transmission Pipes

The thermal insulation effect of aerogel insulation blanket is 2-5 times that of traditional insulation materials. When used in high-temperature pipeline environments, its service life is close to 20 years.Aerogel felt can achieve the same thermal insulation effect, and its thickness is only 20% to 30% of traditional materials. After thermal insulation, the heat loss is small and the space utilization rate is high. And at high temperatures, the effect is more obvious.

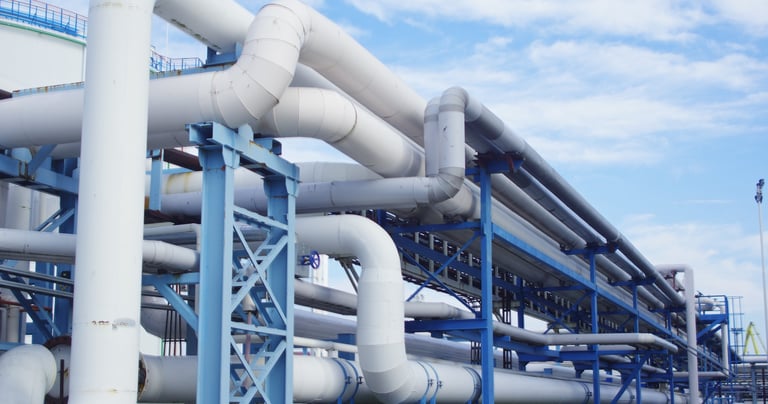

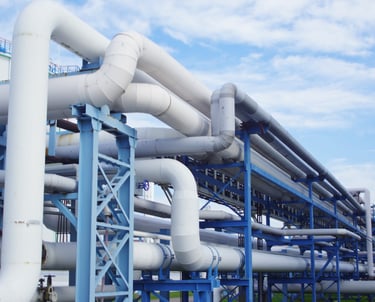

Chemical and Refining Industries

Aerogel insulation blanket is relatively hydrophobic and can effectively prevent water from entering pipes and equipment. It also has B1 to A fireproof properties. The unique three-dimensional network structure of aerogel prevents other thermal insulation materials from sintering, deformation and sedimentation during long-term high-temperature use.
